Smart Connect Traffic Simulator

Introduction

ESB deployments in transportation environments inter-connect a variety of different systems.

Testing such complex deployments is challenging. Normally it is impossible to test the ESB until the actual production or staging deployment is setup, simply because it is not possible to recruit all systems and teams at one time for the offline testing phases.

The TSB traffic simulator (TSB-TS) bridges this gap. It enables E2E (end to end) testing and load testing with no dependency on other systems availability.

The TSB-TS is designed to:

  • Simulate simultaneously dozens of different data source types (Ingress) sent to the TSB

  • Simulate simultaneously dozens of different data sink types (Egress) received from the TSB

  • Cross verify traffic it sends out with traffic it receives - to assess the functionality of the TSB

  • Support heavy load bandwidth, up to multi thousands of messages per second

  • Simulate different messaging scenarios

  • Generate a report on TSB functionality

  • Easily adjust to support new protocols and new scenarios

TSB-TS is available as a separate tool. It can be used for end-to-end functionality testing and verification for any ESB product.

Architecture

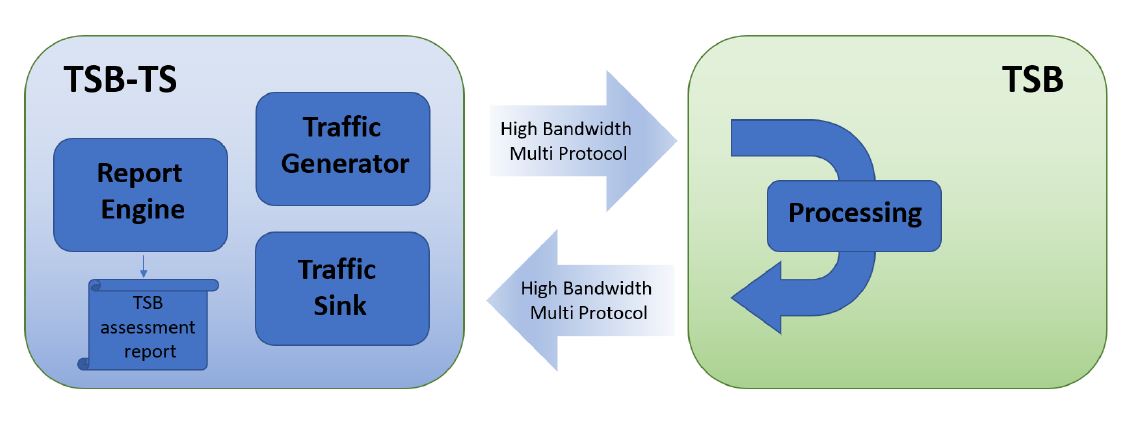

TSB-TS Architecture

TSB-TS Architecture

User Interface

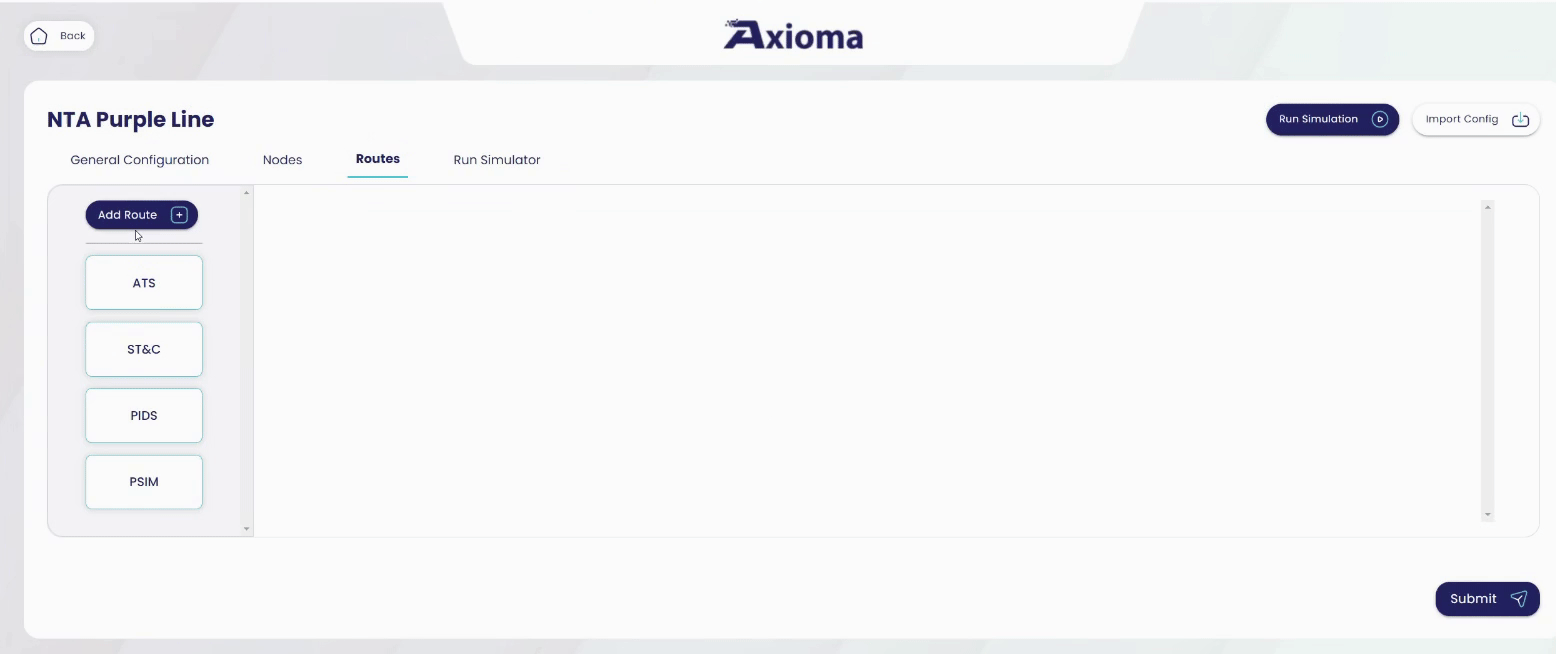

TSB-TS User Interface

TSB-TS User Interface
